STP. REACTORS

ELECTRO-COAGULATION SYSTEMS, REACTORS
Advanced Coagulation systems for wastewater treatment.

Pixecell Series STP-electrocoagulation reactors - for treatment of industrial wastewater originating from pharma industry, dairy, distillery, textile, dyeing units, meat processing industries& more. Advanced Coagulation systems coagulates raw sewage and convert industrial/commercial/domestic waste water into clean reusable water or for safe discharge into drain.

domestic-sewage-system

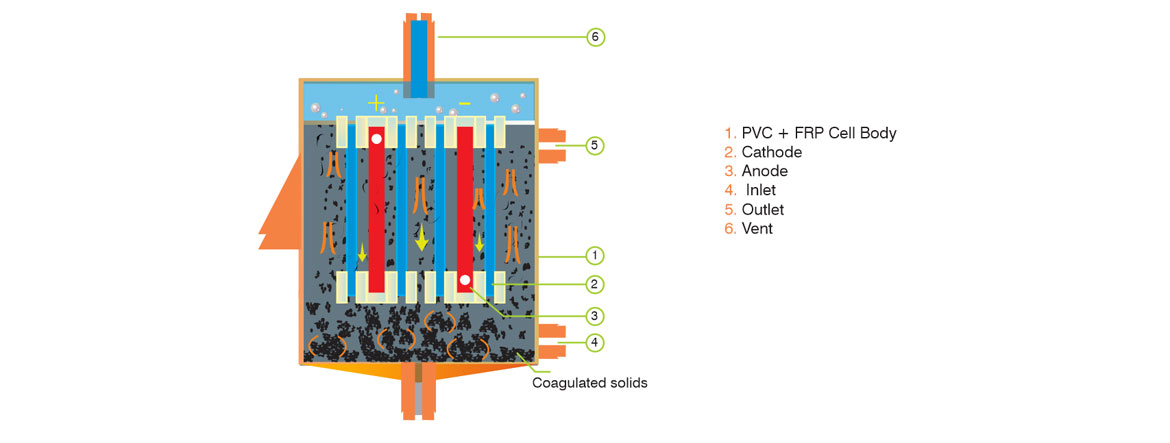

Compact, Modular Pixecell electro-coagulation reactors removes ions, FOG, Silica, Organic particulate matter and helps in reduction of COD, BOD and suspended solids.
Pixecell Reactors can be supplied as separate units for sewage treatment which are skid-based, controlled by automatic control panel, with Optional PVC/FRP Tanks
Brochure

Specification

1 Mode Of operation Continuous
2 pH range of Sewage/Effluent 4 to 6 (optimum)
3 Operating Temperature 150 ° C to 350 ° C
4 Electrolyzer Orientation Vertical
3 Electrolyzer Tank PVC / FRP

* Contact Manufacturer / dealer for model-specific technical specification.

MODELS

Refer the below table for our Range of Electro-Coagulation Reactor products

Models Design Capacity (litres/hour) Electrolyzer Capacity (KLD)
PIXE-S-1.2/50 50 1.2
PIXE-S-2.4/100 100 2.4
PIXE-S-4.8/200 200 4.8
PIXE-S-7.2/300 300 7.2
PIXE-S-10/425 425 10.0
PIXE-S-15/625 625 15.0
PIXE-S-20/850 850 20.0
PIXE-S-25/1K 1050 25.0
PIXE-S-100/4.2K 4200 100.0
PIXE-S-500/21K 21000 500.0

Benefits

  • * Non Biological Systems
  • * Start ans Stop At Will
  • * Modular Construction
  • * Continuous/Batch Operation
  • * Easily Expandable
  • * Eco-safe & user Friendly
  • * Color removal
  • * Low operating cost
  • * Requires low power
  • * Low capital cost
  • * Less space required
  • * Consistent & reliable results
  • * Suits for remote locations
  • * Reuse of water for multi application

Applications

Coagulates Raw Sewage
Wastewater (Sewage waste) for

Various Domestic, commercial applications

  • Railways
  • Airports
  • Single-family homes
  • Clustered subdivisions
  • Residential Colonies
  • Municipalities
  • Restaurants
  • Schools
  • Recreational Vehicles
  • Mobile-home parks
  • Office parks
  • Resorts and hotels
  • Golf courses
  • Shopping centers
  • Grocery stores
  • Camps for refugees
  • Military Camps
  • Hospitals & Health Centers
